Zigzag type 3 in 1 decoiler straightener feeder
Product Features
The electronic numerical control automatic left-right offset blanking and blanking production line adopts double-shaft alternating feeding, has simple numerical control and control, saves the coiling cost compared with the traditional feeding and blanking machine, and has automatic operation flow from coiling feeding, uncoiling, automatic offset feeding, blanking and automatic output, thus completing consistent continuous operation and improving productivity quality and production efficiency.
The machine consists of a feeding trolley, a hydraulic uncoiler and a precision leveling feeder.
The offset three-in-one servo leveling feeder has the functions of high-efficiency wafer punching and material utilization rate saving. It can be used to uncoil, level, shift left and right, punch the lower circle and other plates of various rolled plate materials. It is an indispensable high-efficiency processing line for metal plate processing wafer blanking. A material stacking system can be added behind the unit to collect the lower wafers into stacks.
SPECIFICATION PARAMETER
Model
GLK3-600P
GLK3-800P
GLK3-1000P
GLK3-1300P
Width of material (mm)
50-600
50-800
50-1000
50-1300
Thickness of material (mm)
0.3-4.5
Coil I.D.(mm)
508
Coil O.D.(mm)
1400
Expansion
Hydraulic rod type
Max.Coil Weight(kg)
5000
5000
7000
7000
Working Rollers
4 on top/3 on bottom
Pinch Rollers
1 on top/1 on bottom
 Feeding Rollers
1 on top/1 on bottom
Correction accuracy
1.5mm/m²
Operating air
0.5Mpa
 Pass line
AOR  ±100mm
Feeding accuracy
0-500 - mm + / - 0.15 mm,
500-1000 - mm + / - 0.2 mm
Feed servo motor
AC5.5kw
AC7.5kw
AC11kw
AC15kw
Offset servo motor
AC5.5kw
AC7.5kw
AC11kw
AC15kw
Uncoiler Motor
AC2.2kw
AC2.2kw
AC3.75kw
AC3.75kw

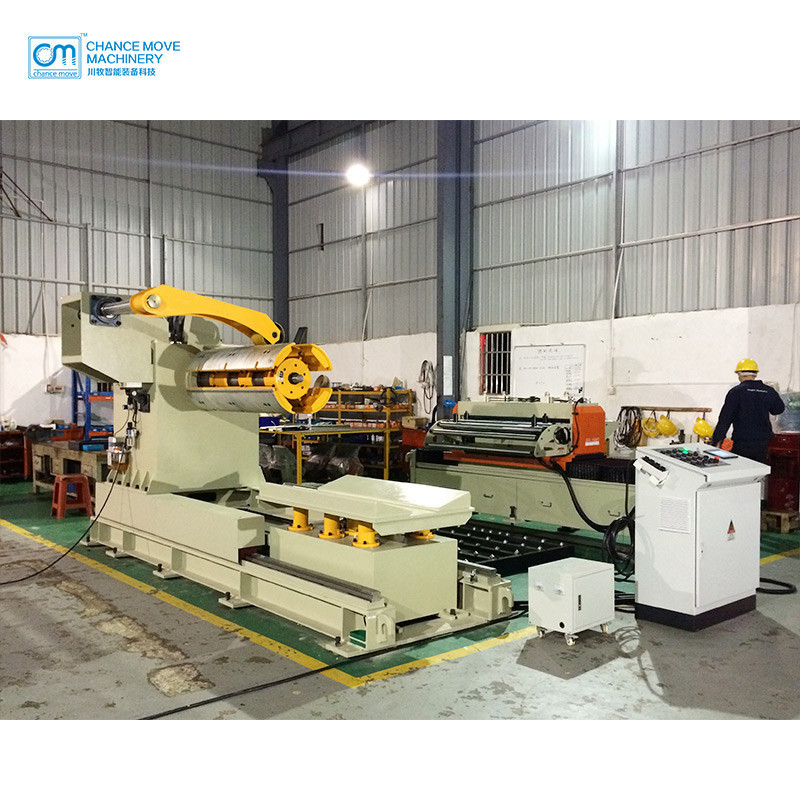

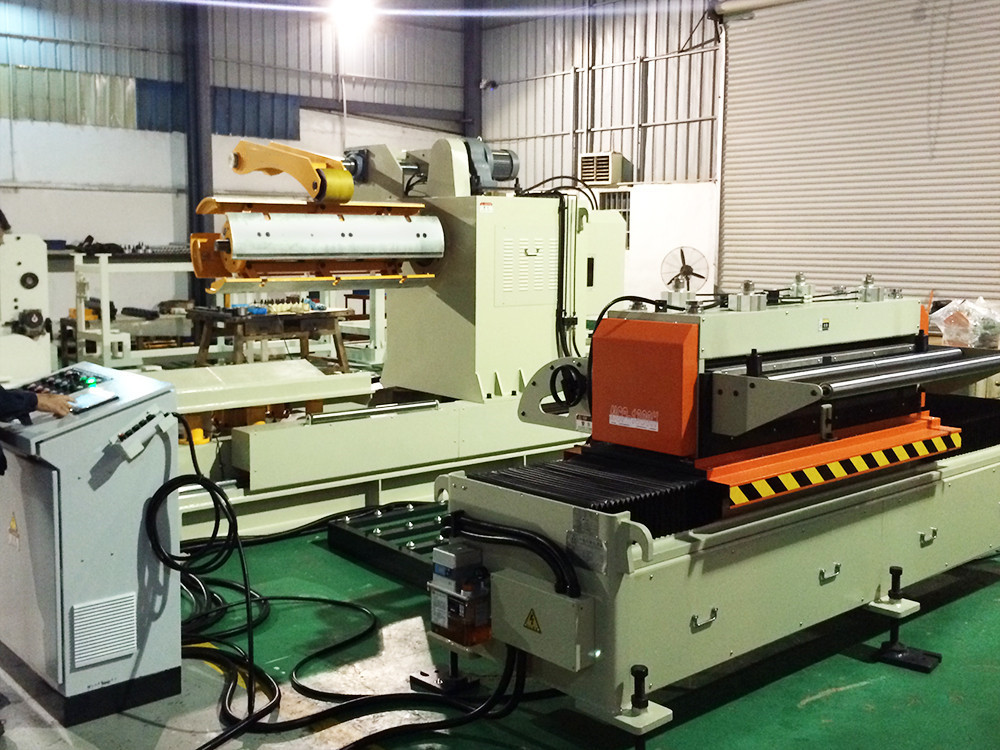

Product Display
