Transfer system in-Die
Review
Description
Product Description
High-performance drive mechanism
Product Features
High-performance drive mechanism
Special cross-section transfer rod is made of aviation grade 6063-T5 aluminum extrusion.light weight,high strength,can effectively avoid the phenomenon of high-speed,heavy-duty wave vibration;transfer shaft with timing belt,precision spline shaft and inclined spline gear. High-speed,quiet,wear-resistant,durability,and the body can be done with the life;lift axis precision planetary reducer using a high-speed,high-speed,high-speed...Swing cam drive,compact design and stability,with pneumatic gravity balance mechanism,bearing capacity, fast response speed.
SPECIFICATION PARAMETER
|
Model
|
MN-30-10
|
MN-40-10 | MN-50-10 |
MN-60-10
|
MN-80-10
|
|
Transfer travel (mm)
|
300
|
400 | 500 |
600
|
800
|
|
Transfer accuracy（mm)
|
±0.2
|
||||
Lifting and drop travel（mm) | 100 | ||||
Backward travel (mm) | 800 | ||||
Maximum transfer load（kg） | 1.5 | 2.0 | 2.0 | 2.5 | 5.0 |
|
Operating cycle（Sec)
|
1.5
|
1.8 | 2.2 |
2.4
|
2.7
|
Taking way | Vacuum sucker/Electromagnet/Clamping jaw | ||||

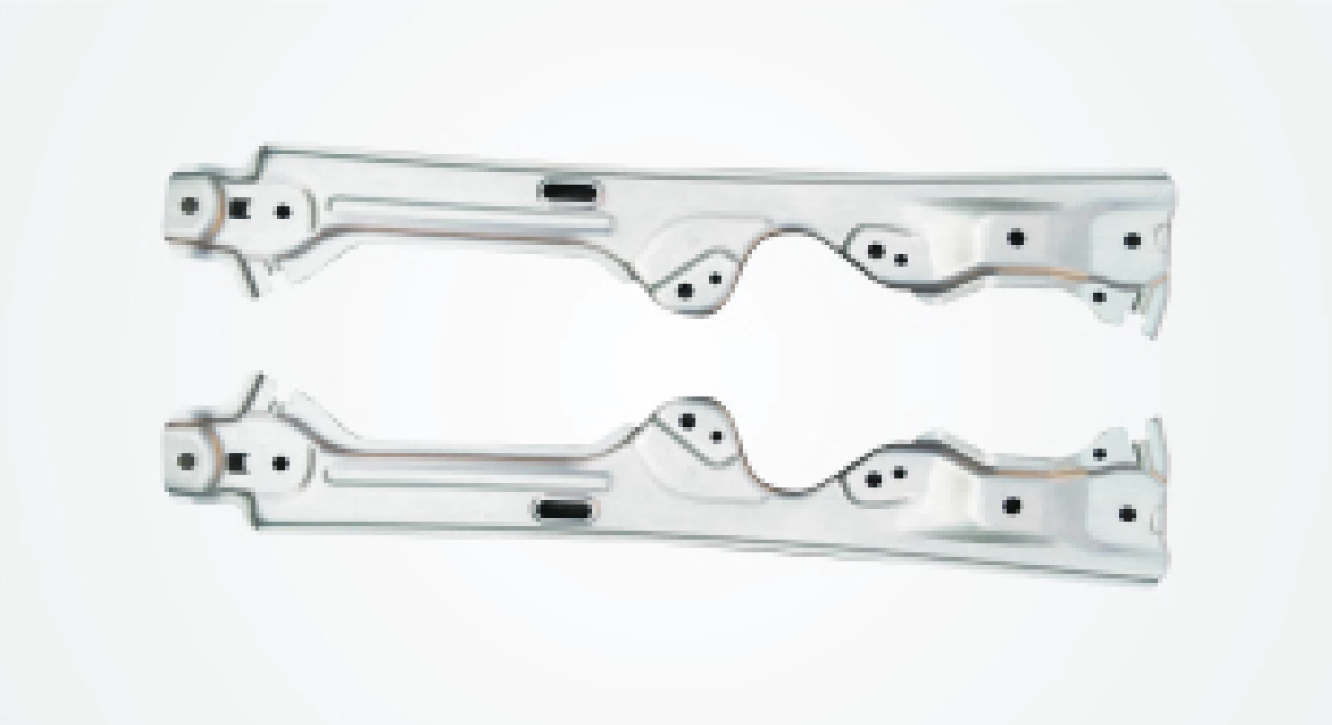

Product Display
