RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
RNC-H Compare thick material servo roll feeder(0.5-4.5mm)
Model
RNC-H

Product review

Description

Product Description
RNC-H Servo Feeder Machine (0.5-6.0mm)
Product Features
1.The model designed for strong and thick plate materials shows excellent quality in the due aspects of thick plates.

2.It has two groups of feeding rollers to effectively prevent material from slipping.

3.Through secondary transmission, the feeding intensity of the feeder is strengthened.

OPTION ACCESSORY:

Feedmaster device
Feed length memory module
Counter setting device
Programable feeding length/speed device
Material end stop device
Programable feeding forward/reverse device
Feedingmangle selection device
Material lubrication system device
Syntheric rubber cpater roll
SPECIFICATION PARAMETER
Model
RNC-300H
RNC-400H
RNC-500H
RNC-600H
 Width of material (mm)
300
400
500
600
Thickness of material (mm)
0.5-6.0
Max.feed length (mm)
9999.99
Feed accuracy (mm)
±0.2
Feed Roll
Upper Roll Ø90mm, Bottom Roll Ø90mm
 Speed (m/min)
20
Releasing system
Pneumatic Type
Servo Motor
Yaskawa, Japan
Servo Drive
Yaskawa, Japan
PLC
Mitsubishi, Japan
Touch Screen
Weinview, Taiwan
Power
1.8kw
2.9kw

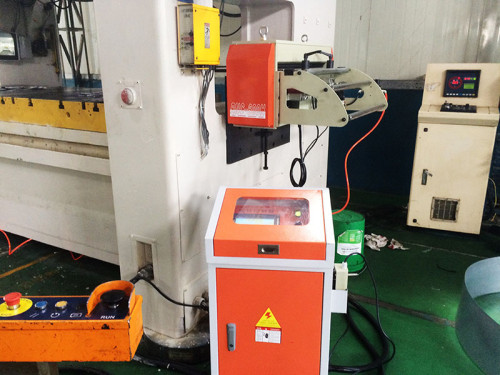

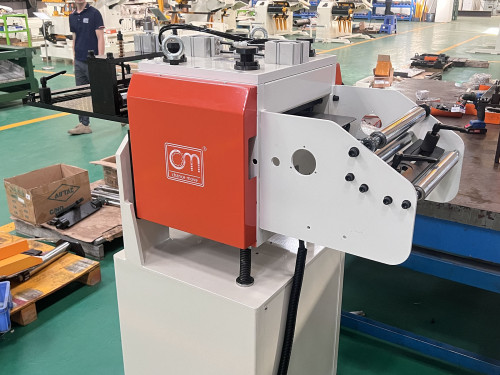

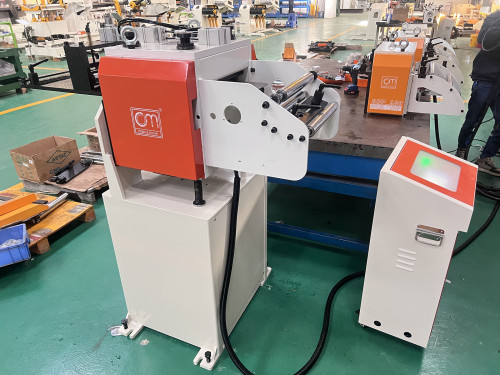

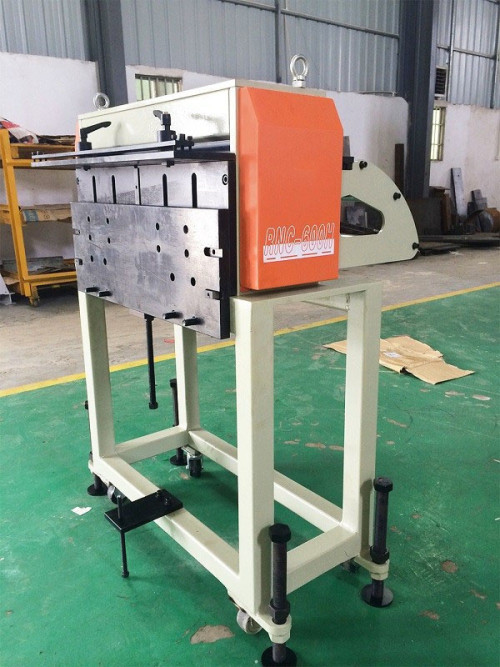

Product Display
