Model
MT

Product review

Description

Product Description

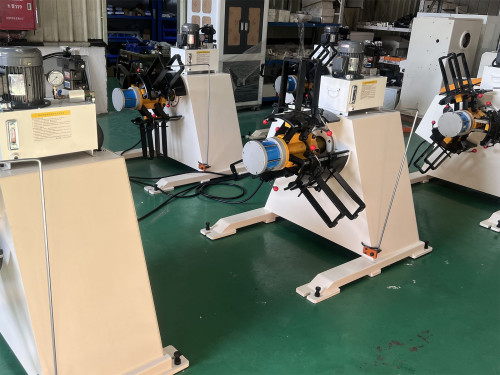

MT Heavy-duty uncoiler (material rack)
Product Features
1.Suitable for all kinds of coil material feeding and receiving, sheet metal and non-metallic materials.

2.The brake device is adjustable in tightness, and the spindle adopts the reinforced type, which makes the material reel rotate more smoothly and increases the load force.

3.Adopt imported parts, less failure, long life.

4.Expansion mode can choose manual expansion or hydraulic expansion, can add pressure arm, variable frequency speed regulation, trolley, etc.

5.Can be customized according to the material situation.
SPECIFICATION PARAMETER
Model
MT-200
MT-300
MT-400
MT-500
MT-600
Width of material(mm)
200
300
400
500
600
Thickness of material(mm)
0.1-3.0
Coil I.D.(mm)
450-530
Coil O.D.(mm)
1200
Max Coil Weight(kg)
500
1000
2000
2000
2000
