Model
GL-H

Product review

Description

Product Description

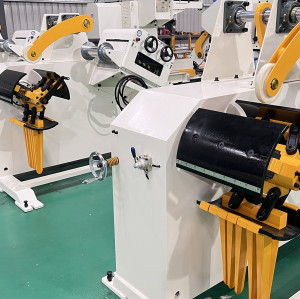

GL-H Uncoiler and straightener two in one
1.Decoiler Shaft

2.Pressing Arm

3.Coil Supporting Arm

4.Inlet Arm

5.Straightening Part

6.Coil Outlet

7.Control Panel

8.Induction Sensor

9.Hydraulic Station

SPECIFICATION PARAMETER
Model
GL-300H
GL-400H
GL-500H
GL-600H
GL-800H
Max. Coil Width(mm)
300
70-600
70-800
70-800
70-1300
Thickness of Material(mm)
0.5-4.5
Coil I.D.(mm)
460-520
Coil O.D.(mm)
1200
Coil Weight(kg)
2000
2000
3000
5000
5000
Working Rollers
Ø68mm*7pcs
Uncoil Motor
1.5 Kw
Uncoil Expansion
Manual Expansion (Hydraulic for optional)
Hydraulic Expansion
Pressing Arm
Option
Levelling Motor
2.2 Kw
2.2 Kw
4.4 Kw
4.4 Kw
5.5 Kw
Levelling Adjustment
Eccentric turbine worm adjusting
Feeding Speed
15m/min
