Model
GL

Product review

Description

Product Description
GL Uncoiler and straightener two in one
Product Features
1.Because of the integration of the uncoiler and the leveler, the use space can be saved.

2.The leveling machine can be flexibly set according to the existing space and conveniently adjust the working Angle.

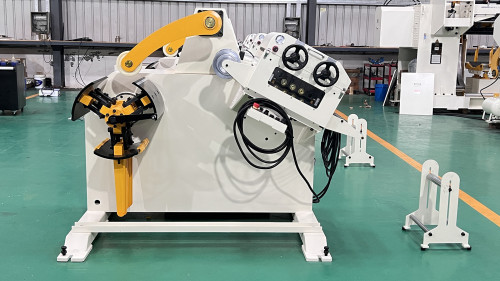

1.Decoiler

2.Straightener Inlet

3.Control Handle

4.Straightener

5.Straightener Outlet

6.Induction Frame

 SPECIFICATION PARAMETER
Model
GL-200
GL-300
GL-400
GL-500
GL-600
Stock Width(mm)
0.3-3.2
Stock Thickness(mm)
200
300
400
500
600
Coil Weight(kg)
1000
1500
2000
2500
2500
Uncoil Expansion
Manual
Coil I.D.
Φ508
Coil O.D.
Φ1200
